Description

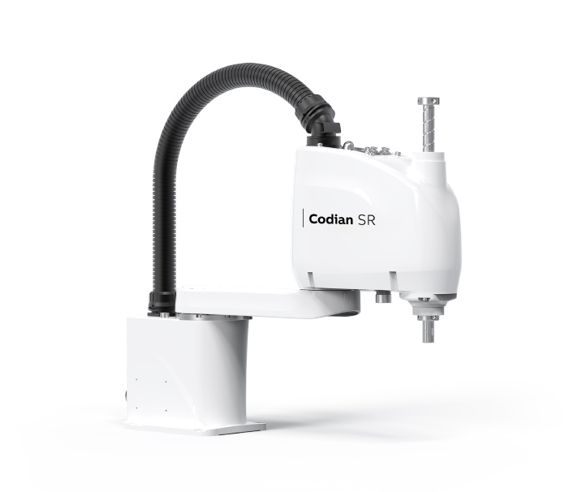

B&R Automation’s newly released Codian SCARA robots offer a versatile product range designed to suit the needs of virtually any customer application.
Codian SCARA Robotics – SR100 – SR400 Series (Product Selection & Options)
Codian SR 100‑Series
The SR100 Series is built for precision, speed, and efficiency. With a 3 kg payload and a 400 mm horizontal reach, it is the ideal choice for compact applications such as assembly, pick‑and‑place, inspection, and packaging. It delivers consistent, reliable performance in every movement.
Codian SR 200‑Series
Engineered for applications requiring payloads up to 6 kg, the SR200 Series excels in assembly, pick‑and‑place, inspection, and packaging tasks. Designed to meet the strict demands of Modern electronics manufacturing, it offers outstanding speed, accuracy, and repeatability. Cleanroom variants with ISO Class 5 certification make it a strong fit for sensitive environments.
Codian SR 300‑Series
The SR300 Series combines a sleek, lightweight design with effortless integration into high‑speed production lines. Internal cable and pipe routing create a clean, interference‑free profile, while its compact footprint (just 170 × 208 mm) and 24 kg weight enable flexible installation. With reach capabilities up to 800 mm, it maximizes both space efficiency and motion range. Cleanroom variants are also available.
Codian SR 400‑Series
Built for heavy‑duty performance, the SR400 Series offers high‑payload SCARA capabilities — 20 kg, 30 kg, or 65 kg — paired with up to 1,200 mm horizontal and 420 mm vertical reach. It’s perfectly suited for demanding packaging and handling applications across a wide range of industries, delivering strength, stability, and high throughput.
Codian SCARA Series – Product Comparison Table
SR 200 Series
| Model | Max Payload | Reach | Mounting | Axes | Stroke Length (Z) | IP Rating | Cleanroom Class |
| SR 200‑6/500 | 6 kg | 500 mm | Floor | 4 | 200 mm / 300 mm | IP20 | ISO 5 |
| SR 200‑6/600 | 6 kg | 600 mm | Floor | 4 | 200 mm / 300 mm | IP20 | ISO 5 |
| SR 200‑6/700 | 6 kg | 700 mm | Floor | 4 | 200 mm / 300 mm | IP20 | ISO 5 |
SR 300 Series
| Model | Max Payload | Reach | Mounting | Axes | Stroke Length (Z) | IP Rating | Cleanroom Class |
| SR 300‑10/600 | 10 kg | 600 mm | Floor | 4 | 200 / 300 / 420 mm (420 mm not available for Cleanroom) | IP20 | ISO 5 |
| SR 300‑10/700 | 10 kg | 700 mm | Floor | 4 | 200 / 300 / 420 mm (420 mm not available for Cleanroom) | IP20 | ISO 5 |
| SR 300‑10/800 | 10 kg | 800 mm | Floor | 4 | 200 / 300 / 420 mm (420 mm not available for Cleanroom) | IP20 | ISO 5 |
SR 400 Series
| Model | Max Payload | Reach | Mounting | Axes | Stroke Length (Z) | IP Rating | Cleanroom Class |
| SR 400‑20/1000 | 20 kg | 1000 mm | Floor | 4 | 420 mm | IP20 | N/A |
| SR 400‑30/1000 | 30 kg | 1000 mm | Floor | 4 | 420 mm | IP20 | N/A |
| SR 400‑65/1200 | 65 kg | 1200 mm | Floor |
